Product Description:

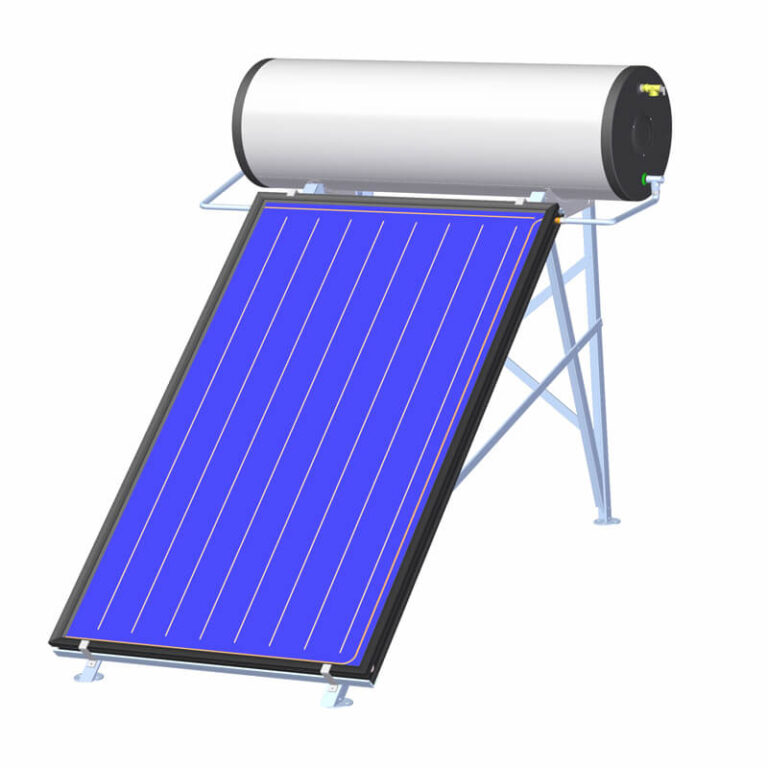

This is a pressurized system, with direct tank and flat panel solar collector combined.We call it compact flat panel pressurized solar water heater.
Open-loop systems are simply and fast way of water heating. They are best suited to warm climate regions because of operating directly with potable water. Open-loop systems are not recommended in regions where water quality is not good enough.
The enamel is coated inside the water tank which is of high corrosion resistance and of great pressure bearing. Our porcelain enamel tanks approved by CE, WATER MARK, ETL, WRAS, EN12977-3
The whole system approved by SOLAR KEYMARK (EN 12976 Standard)
Imported blue titanium absorber from Germany with high absorptivity(95%) and low heat loss(5%). High purity oxygen-free copper pipes as circulation system with high thermal conductivity, anti-corrosion pressure-bearing and longer service life. Low-iron tempered solar glass as cover with 92% transmittance. Our flat panel solar collector approved by SOLAR KEYMARK(EN12975 Standard)
High Quality Parts:
CE Approved
Water Mark Approved
CE Approved
Real Images and Details:
Technical Parameters:
Direct Water Tank:
|
Tank Capacity |
100L |
150L |
200L |
250L |
300L |
|
Outer Tank Diameter(mm) |
Φ540 |
Φ540 |
Φ540 |
Φ540 |
Φ540 |
|
Inner Tank Diameter(mm) |
Φ440 |
Φ440 |
Φ440 |
Φ440 |
Φ440 |
|
Inner Tank Material |
Steel BTC340R(2.5mm thick) |
||||
|
Inner Tank Coating |
Porcelain Enamel(0.5mm thick) |
||||
|
Outer Tank Material |
Color Steel(0.5mm thick) |
||||
|
Insulating material |
Rigid polyurethane foam |
||||
|
Insulation thickness |
50mm |
||||
|
operating Pressure |
6bar |
||||
|
Corrosion protection |
magnesium anode |
||||
|
Electric Element |
Incoloy 800(2.5kw,220v) |
||||
|
Adjustable Thermostat |
30℃~75℃ |
||||
|
TP Valve |
7bar,99℃(water mark approved) |
||||
Flat Panel Solar Collector:
|
Dimension |
2000*1000*80mm |
2000*1250*80mm |
|
|
Gross area |
2m2 |
2.5m2 |
|
|
Aperture area |
1.85m2 |
2.35m2 |
|
|
Absorber |
Aluminum Plate |
Aluminum Plate |
|
|
|
Material |
Germany Blue Titanium |
Germany Blue Titanium |
|
Selective Coating |
Absorptivity |
≥95% |
≥95% |
|
|
Emissivity |
≤5% |
≤5% |
|
Header Pipes |
Copper (¢ 22*0.8mm)/(¢ 25*0.8mm) |
Copper (¢ 22*0.8mm)/(¢ 25*0.8mm) |
|
|
Riser Pipes |
Copper (¢ 8*0.6mm)/(¢ 10*0.6mm) |
Copper (¢ 8*0.6mm)/(¢ 10*0.6mm) |
|
|
Cover Plate |
Material |
Low – iron tempered glass |
Low – iron tempered glass |
|
|
Transmittance |
≥92% |
≥92% |
|
Frame |
Aluminum alloy |
Aluminum alloy |
|
|
Base plate |
Galvanized plate |
Galvanized plate |
|
|
Base Insulation |
Glass wool |
Glass wool |
|
|
Side Insulation |
polyurethane |
polyurethane |
|
|
Sealing material |
EPDM |
EPDM |
|
|
Max test pressure |
1.4MP |
1.4MP |
|
|
Max work pressure |
0.7MP |
0.7MP |
|
How It Works:

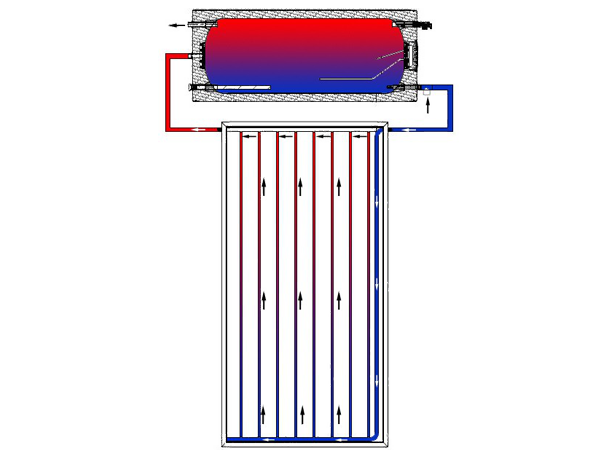

The system operates on the thermosiphon principle, It adopts the water-water circulation type. Heat adsorption membrane on the flat plate absorbs the solar heat to heat the water in the heat collector directly. Deliver the heated water to the upper part of hot water storage tank via circulation pipe and unheated cold water in the lower part flows into the flat-type heat collector as supplementation. Then cold water is heated and delivered to the hot water storage tank. The circulation of water repeats till all water in the water tank is heated to the specified temperature.
