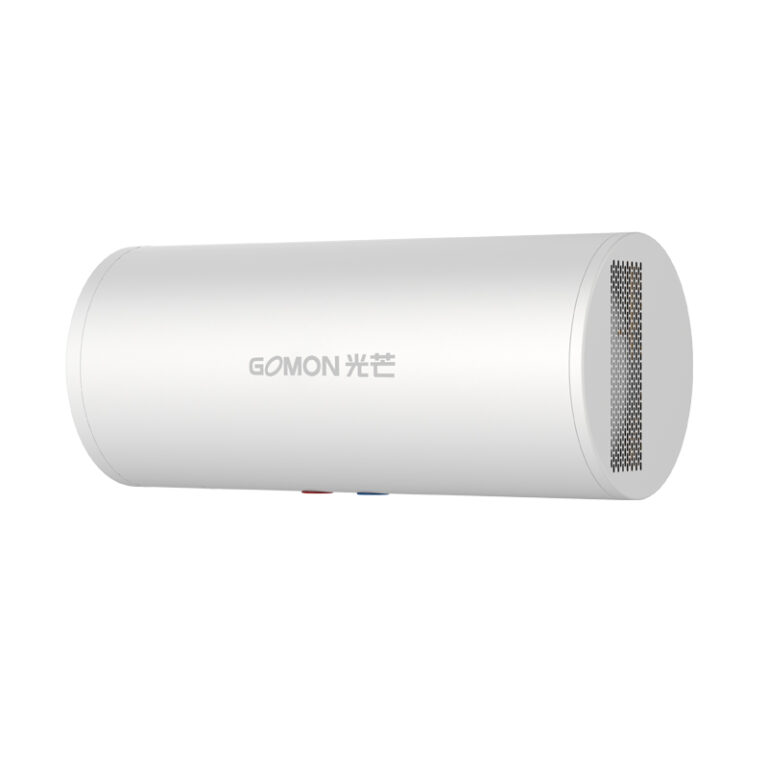

KRS16E Series Wall Mounted Heat Pump Water Heater

Product Description:

Heat pump water heater works on principle just like an air conditioner or like the refrigerator. It absorbs warmth from the air and transfer it to heat water. Hence it’s also referred to as air-source heat pumps.It operates on electricity but is more efficient than a conventional electric water heater.

GOMON high-efficiency all in one heat pump water heaters with CB、EMC and EN16147 approved can provide an energy efficient and innovative water heating solution for your house.

Enamel Water Tank Brings You Healthier Water Quality

High pressure and fatigue resistance which pass 280,000 times pulse test.

High corrosion resistance because enamel coating makes the welding line of steel plate seperate with water, so with long working life.

Our Porcelain enamel tanks approved by CE, WATER MARK, ETL, WRAS, EN12977-3.

High Efficient Compressor

Being internationally-renowned brand dedicated compressor for heat pump, it is more reliable in system matching and quieter in operation.

Intelligent Defrosting

With intelligent defrosting design, it can revolutionarily solve the bottlenecks of heat exchangers in cold winter such as frosting and slow heating, etc., allowing you to spend a more comfortable winter.

1:1 Gold Ratio

The unit and water tank are matched with a gold ratio to eliminate the phenomenon of disharmony, so that it is more energy-saving and professional.

Real Images and Details:

Technical Parameters:

Tank Capacity80L100L
Inner Tank MaterialEnamelled Steel
(Steel BTC340R, 2.5mm thickness)
Enamelled Steel
(Steel BTC340R, 2.5mm thickness)
Outer casingPainted galvanized steelPainted galvanized steel
Tank Rated Working Pressure0.8MPa0.8MPa
Waterproof gradeIPX4IPX4
CondenserMicro-Channel Heat ExchangerMicro-Channel Heat Exchanger
Electric Element Power2000W2000W
Heat Pump Rated Input220W220W
Heat Pump Output750W750W
Max. Input Power2450W2450W
Heating Capacity16L/H16L/H
Max. Water Temperature75℃75℃
Voltage~220-240V / 50Hz~220-240V / 50Hz
Inlet / Outlet size¾”¾”
Control MethodRemote displayRemote display
Noise Level40dB(A)40dB(A)

System Installation Diagram

Installation and Operation Manual:
